DBSCAN( Density Based Spatial clustering of application with noise)
분석가 황규진
2024. 7. 12. 15:43
from sklearn.datasets import load_iris
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
%matplotlib inline
iris = load_iris()
feature_names = ['sepal_length', 'sepal_width', 'petal_length', 'petal_width']
# 보다 편리한 데이타 Handling을 위해 DataFrame으로 변환
irisDF = pd.DataFrame(data=iris.data, columns-feature_names)
irisDF['target'] = iris.target
### 클러스터 결과를 담은 DataFrame과 사이킷런의 Cluster 객체등을 인자로 받아 클러스터링 결과를 시각화하는 함수
def visualize_cluster_plot(clusterobj, dataframe, label_name, iscenter=True):
if iscenter:
centers clusterobj.cluster_centers_
unique_labels = np. unique (dataframe [label_name].values)
markers=['o', 's', '^', 'x', '*']
i sNoise=False
for label in unique_labels:
label_cluster = dataframe [dataframe [label_name]==label]
if label == -1:
cluster_legend = 'Noise'
isNoise=True
else:
cluster_legend = 'Cluster '+str(label)
plt.scatter(x=label_cluster['ftr1'], y=label_cluster['ftr2'], s=70, edgecolor='k', marker=markers[label], label=cluster_legend)
if iscenter:
center_x_y = centers[label]
plt.scatter(x=center_x_y[0], y=center_x_y[1], s=250, color='white', alpha=0.9, edgecolor='k', marker-markers[label])
plt.scatter(x=center_x_y[0], y=center_x_y[1], s=70, color='k', edgecolor='k', marker='$%d$' % label)
if isNoise:
legend_loc='upper center'
else: legend_loc='upper right'
plt.legend(loc=legend_loc)
plt.show()
from sklearn.decomposition import PCA
# 2차원으로 시각화하기 위해 PCA n_componets=2로 피처 데이터 세트 변환
pca = PCA (n_components=2, random_state=0)
pca_transformed = pca.fit_transform(iris.data)
# visualize_cluster_2d( ) 함수는 ftr1, ftr2 컬럼을 좌표에 표현하므로 PCA 변환값을 해당 컬럼으로 생성
irisDF ['ftr1'] = pca_transformed[:,0]
irisDF ['ftr2'] = pca_transformed[:,1]
visualize_cluster_plot(dbscan, irisDF, 'dbscan_cluster', iscenter=False)
visualize_cluster_plot(dbscan, irisDF, 'dbscan_cluster', iscenter = False)
from sklearn.cluster import DBSCAN
dbscan = DBSCAN (eps=0.8, min_samples=8, metric='euclidean')
dbscan_labels = dbscan.fit_predict (iris.data)
irisDF ['dbscan_cluster'] = dbscan_labels
irisDF['target'] = iris.target

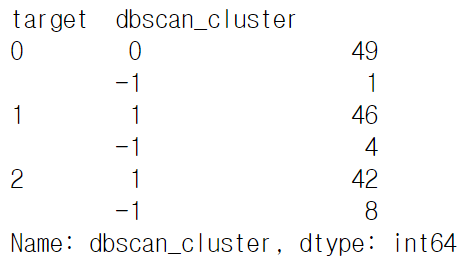

iris_result = irisDF.groupby(['target'])['dbscan_cluster'].value_counts()
print (iris_result)

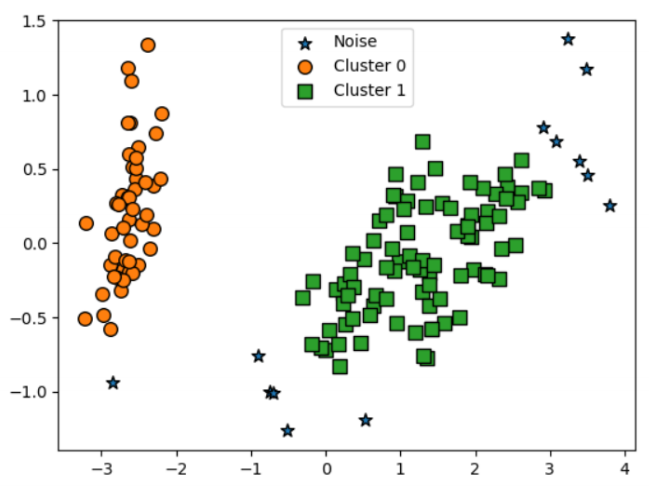

visualize_cluster_plot(dbscan, irisDF, 'dbscan_cluster', iscenter=False)
dbscan = DBSCAN (eps=0.6, min_samples=16, metric='euclidean')
dbscan_labels = dbscan.fit_predict (iris.data)
irisDF ['dbscan_cluster'] = dbscan_labels
irisDF['target'] = iris.target
iris_result = irisDF.groupby(['target'])['dbscan_cluster'].value_counts()
print (iris_result)
visualize_cluster_plot(dbscan, irisDF, 'dbscan_cluster', iscenter=False)
from sklearn.datasets import make_circles
X, y = make_circles (n_samples=1000, shuffle=True, noise-0.05, random_state=0, factor=0.5)
clusterDF = pd.DataFrame(data=X, columns=['ftrl', 'ftr2'])
clusterDF['target'] = y
visualize_cluster_plot (None, clusterDF, 'target', iscenter=False)

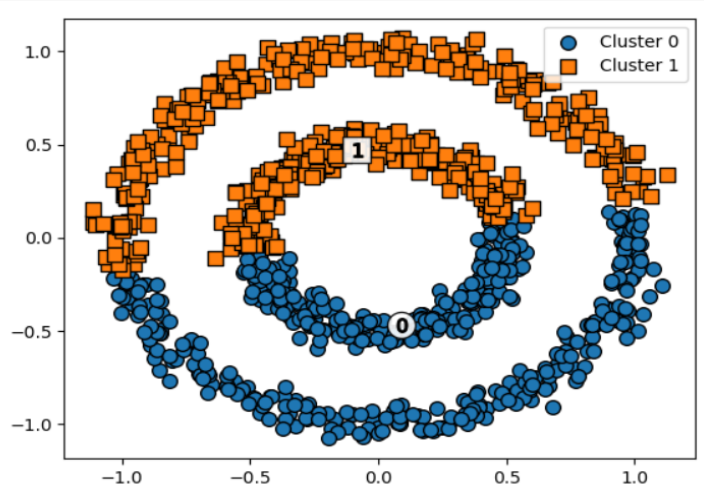

#KMeans로 make_circles() 데이터 셋을 클러스터링 수행
from sklearn.cluster import KMeans
kmeans = KMeans (n_clusters=2, max_iter=1000, random_state=0)
kmeans_labels = kmeans.fit_predict (X)
clusterDF [ 'kmeans_cluster'] = kmeans_labels
visualize_cluster_plot(kmeans, clusterDF, 'kmeans cluster', iscenter=True)
# GMM으로 make_circles( ) 데이터 셋을 클러스터링 수행.
from sklearn.mixture import GaussianMixture
gmm = GaussianMixture (n_components=2, random_state=0)
gmm_label = gmm.fit(X).predict(X)
clusterDF['gmm_cluster'] = gmm_label
visualize_cluster_plot(gmm, clusterDF, 'gmm_cluster', iscenter=False)
# OBSCAN으로 make_circles() 데이터 셋을 클러스터링 수행.
from sklearn.cluster import DBSCAN
dbscan = DBSCAN (eps-0.2, min_samples 10, metric-'euclidean')
dbscan_labels = dbscan.fit_predict (X)
clusterDF ['dbscan_cluster'] = dbscan_labels
visualize_cluster_plot(dbscan, clusterDF, 'dbscan_cluster', iscenter=False)
실습 - 고객 세그먼테이션(RFM - 고객 세분화 분석)
import pandas as pd
import datetime
import math
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
retail_df = pd.read_excel(io='Online Retail.xlsx')
retail_df.head(3)
retail_df.info()
retail_df = retail_df[retail_df['Quantity'] > 0]
retail_df = retail_df[retail_df['UnitPrice'] > 0]
retail_df = retail_df[retail_df['CustomerID'].notnull()]
print(retail_df.shape)
retail_df.isnull().sum()
retail_df['Country'].value_counts()[:5]
retail_df = retail_df[retail_df['Country']=='United Kingdom']
print(retail_df.shape)
RFM 기반 데이터 가공
retail_df['sale_amount'] = retail_df['Quantity'] * retail_df['UnitPrice']
retail_df['CustomerID'] = retail_df['CustomerID'].astype(int)
print(retail_df['CustomerID'].value_counts().head(5))
print(retail_df.groupby('CustomerID')['sale_amount'].sum().sort_values(ascending=False)[:5])
retail_df.groupby(['InvoiceNo','StockCode'])['InvoiceNo'].count().mean()
1.028702077315023
# DataFrame의 groupby() 의 multiple 연산을 위해 agg() 이용
# Recency는 InvoiceDate 컬럼의 max() 에서 데이터 가공
# Frequency는 InvoiceNo 컬럼의 count() , Monetary value는 sale_amount 컬럼의 sum()
aggregations = {
'InvoiceDate': 'max',
'InvoiceNo': 'count',
'sale_amount':'sum'
}
cust_df = retail_df.groupby('CustomerID').agg(aggregations)
# groupby된 결과 컬럼값을 Recency, Frequency, Monetary로 변경
cust_df = cust_df.rename(columns = {'InvoiceDate':'Recency',
'InvoiceNo':'Frequency',
'sale_amount':'Monetary'
}
)
cust_df = cust_df.reset_index()

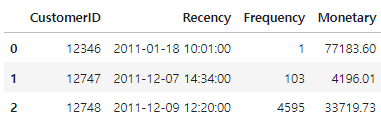

cust_df.head(3)
import datetime as dt
cust_df['Recency'] = dt.datetime(2011,12,10) - cust_df['Recency']
cust_df['Recency'] = cust_df['Recency'].apply(lambda x: x.days+1)
print('cust_df 로우와 컬럼 건수는 ',cust_df.shape)
cust_df.head(3)
RFM 기반 고객 세그먼테이션
fig, (ax1,ax2,ax3) = plt.subplots(figsize=(12,4), nrows=1, ncols=3)
ax1.set_title('Recency Histogram')
ax1.hist(cust_df['Recency'])
ax2.set_title('Frequency Histogram')
ax2.hist(cust_df['Frequency'])
ax3.set_title('Monetary Histogram')
ax3.hist(cust_df['Monetary'])
cust_df[['Recency','Frequency','Monetary']].describe()
from sklearn.preprocessing import StandardScaler
from sklearn.cluster import KMeans
from sklearn.metrics import silhouette_score, silhouette_samples
X_features = cust_df[['Recency','Frequency','Monetary']].values
X_features_scaled = StandardScaler().fit_transform(X_features)
kmeans = KMeans(n_clusters=3, random_state=0)
labels = kmeans.fit_predict(X_features_scaled)
cust_df['cluster_label'] = labels
print('실루엣 스코어는 : {0:.3f}'.format(silhouette_score(X_features_scaled,labels)))
실루엣 스코어는 : 0.592
### 여러개의 클러스터링 갯수를 List로 입력 받아 각각의 실루엣 계수를 면적으로 시각화한 함수 작성
def visualize_silhouette(cluster_lists, X_features):
from sklearn.datasets import make_blobs
from sklearn.cluster import KMeans
from sklearn.metrics import silhouette_samples, silhouette_score
import matplotlib.pyplot as plt
import matplotlib.cm as cm
import math
# 입력값으로 클러스터링 갯수들을 리스트로 받아서, 각 갯수별로 클러스터링을 적용하고 실루엣 개수를 구함
n_cols = len(cluster_lists)
# plt.subplots()으로 리스트에 기재된 클러스터링 만큼의 sub figures를 가지는 axs 생성
fig, axs = plt.subplots(figsize=(4*n_cols, 4), nrows=1, ncols=n_cols)
# 리스트에 기재된 클러스터링 갯수들을 차례로 iteration 수행하면서 실루엣 개수 시각화
for ind, n_cluster in enumerate(cluster_lists):
# KMeans 클러스터링 수행하고, 실루엣 스코어와 개별 데이터의 실루엣 값 계산.
clusterer = KMeans(n_clusters = n_cluster, max_iter=500, random_state=0)
cluster_labels = clusterer.fit_predict(X_features)
sil_avg = silhouette_score(X_features, cluster_labels)
sil_values = silhouette_samples(X_features, cluster_labels)
y_lower = 10
axs[ind].set_title('Number of Cluster : '+ str(n_cluster)+'\\n' \\
'Silhouette Score :' + str(round(sil_avg,3)) )
axs[ind].set_xlabel("The silhouette coefficient values")
axs[ind].set_ylabel("Cluster label")
axs[ind].set_xlim([-0.1, 1])
axs[ind].set_ylim([0, len(X_features) + (n_cluster + 1) * 10])
axs[ind].set_yticks([]) # Clear the yaxis labels / ticks
axs[ind].set_xticks([0, 0.2, 0.4, 0.6, 0.8, 1])
# 클러스터링 갯수별로 fill_betweenx( )형태의 막대 그래프 표현.
for i in range(n_cluster):
ith_cluster_sil_values = sil_values[cluster_labels==i]
ith_cluster_sil_values.sort()
size_cluster_i = ith_cluster_sil_values.shape[0]
y_upper = y_lower + size_cluster_i
color = cm.nipy_spectral(float(i) / n_cluster)
axs[ind].fill_betweenx(np.arange(y_lower, y_upper), 0, ith_cluster_sil_values, \\
facecolor=color, edgecolor=color, alpha=0.7)
axs[ind].text(-0.05, y_lower + 0.5 * size_cluster_i, str(i))
y_lower = y_upper + 10
axs[ind].axvline(x=sil_avg, color="red", linestyle="--")
### 여러개의 클러스터링 갯수를 List로 입력 받아 각각의 클러스터링 결과를 시각화
def visualize_kmeans_plot_multi(cluster_lists, X_features):
from sklearn.cluster import KMeans
from sklearn.decomposition import PCA
import pandas as pd
import numpy as np
# plt.subplots()으로 리스트에 기재된 클러스터링 만큼의 sub figures를 가지는 axs 생성
n_cols = len(cluster_lists)
fig, axs = plt.subplots(figsize=(4*n_cols, 4), nrows=1, ncols=n_cols)
# 입력 데이터의 FEATURE가 여러개일 경우 2차원 데이터 시각화가 어려우므로 PCA 변환하여 2차원 시각화
pca = PCA(n_components=2)
pca_transformed = pca.fit_transform(X_features)
dataframe = pd.DataFrame(pca_transformed, columns=['PCA1','PCA2'])
# 리스트에 기재된 클러스터링 갯수들을 차례로 iteration 수행하면서 KMeans 클러스터링 수행하고 시각화
for ind, n_cluster in enumerate(cluster_lists):
# KMeans 클러스터링으로 클러스터링 결과를 dataframe에 저장.
clusterer = KMeans(n_clusters = n_cluster, max_iter=500, random_state=0)
cluster_labels = clusterer.fit_predict(pca_transformed)
dataframe['cluster']=cluster_labels
unique_labels = np.unique(clusterer.labels_)
markers=['o', 's', '^', 'x', '*']
# 클러스터링 결과값 별로 scatter plot 으로 시각화
for label in unique_labels:
label_df = dataframe[dataframe['cluster']==label]
if label == -1:
cluster_legend = 'Noise'
else :
cluster_legend = 'Cluster '+str(label)
axs[ind].scatter(x=label_df['PCA1'], y=label_df['PCA2'], s=70,\\
edgecolor='k', marker=markers[label], label=cluster_legend)
axs[ind].set_title('Number of Cluster : '+ str(n_cluster))
axs[ind].legend(loc='upper right')
plt.show()

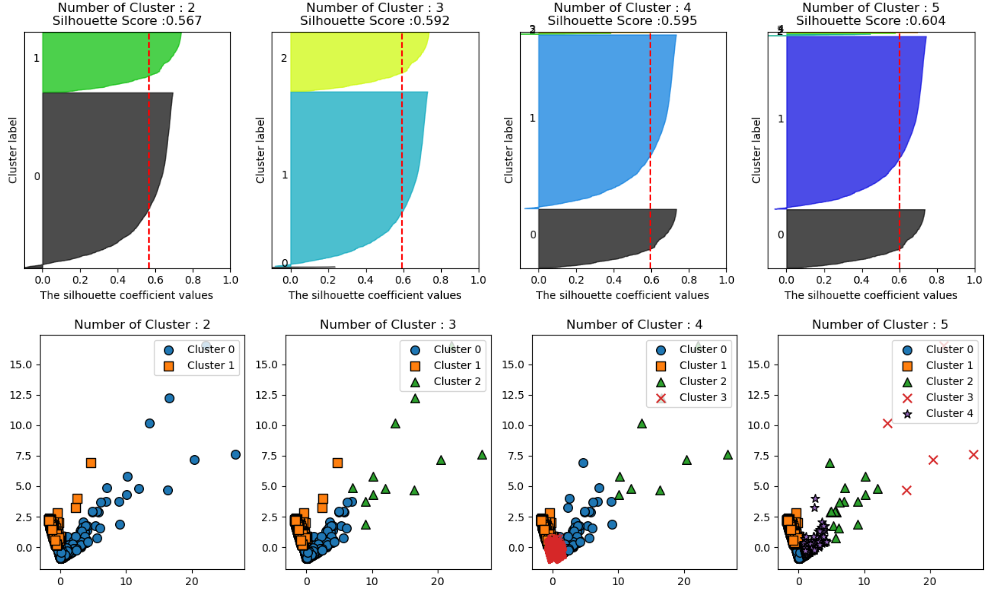

visualize_silhouette([2,3,4,5],X_features_scaled)
visualize_kmeans_plot_multi([2,3,4,5],X_features_scaled)
### Log 변환을 통해 데이터 변환
from sklearn.preprocessing import StandardScaler
from sklearn.cluster import KMeans
from sklearn.metrics import silhouette_score, silhouette_samples
# Recency, Frequecny, Monetary 컬럼에 np.log1p() 로 Log Transformation
cust_df['Recency_log'] = np.log1p(cust_df['Recency'])
cust_df['Frequency_log'] = np.log1p(cust_df['Frequency'])
cust_df['Monetary_log'] = np.log1p(cust_df['Monetary'])
# Log Transformation 데이터에 StandardScaler 적용
X_features = cust_df[['Recency_log','Frequency_log','Monetary_log']].values
X_features_scaled = StandardScaler().fit_transform(X_features)
kmeans = KMeans(n_clusters=3, random_state=0)
labels = kmeans.fit_predict(X_features_scaled)
cust_df['cluster_label'] = labels
print('실루엣 스코어는 : {0:.3f}'.format(silhouette_score(X_features_scaled,labels)))
실루엣 스코어는 : 0.303
visualize_silhouette([2,3,4,5],X_features_scaled)
visualize_kmeans_plot_multi([2,3,4,5],X_features_scaled)
