Seaborn - Kaggle Survey EDA(1)

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

#data = pd.read_csv("data/kaggle_survey_2020_responses.csv", header=1)
data = pd.read_csv("kaggle_survey_2020_responses.csv")

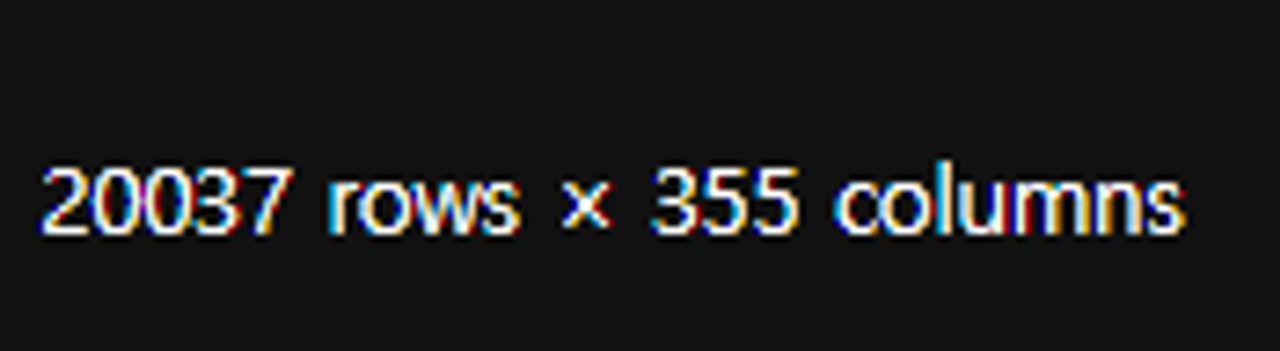

data



Data Science 실무 경력과 관련된 column

# edu_column
edu_columns = ["Q4", "Q6", "Q15"]
# ds_column
ds_columns = ["Q5", "Q20", "Q22"]
#y = ["Q24"]

#edit_data = data[edu_columns + ds_columns + y]
edit_data = data[edu_columns + ds_columns]
edit_data

# null이 아닌 row만
edit_data[edit_data.isnull().any(axis=1)]

# 결측치 제거
final_data = edit_data.dropna()
final_data

교육 수준과 관련된 column

Q4 column

• "What is the highest level of formal education that you have attained or plan to attain with the next 2 years?"

Q4 = final_data["Q4"][1:]
Q4

Q4.value_counts()

# plt.hist
plt.figure(figsize=(16, 16))
plt.title("Histogram of Q4 column")
plt.hist(Q4)
plt.show()

plt.figure(figsize=(16, 16))
plt.pie(Q4.value_counts(),
       labels=Q4.value_counts().index,
       autopct='%d%%',
       startangle=90,
       textprops={'fontsize':12})
plt.axis('equal')
plt.title("Pie chart for Q4 column", fontsize=16)



Q6 column

• For how many years have you been writing code and/or programming?

Q6 = final_data["Q6"][1:]
Q6

Q6.value_counts()

plt.figure(figsize=(12, 16))
# plt.hist
plt.hist(Q6)
plt.xticks(rotation='vertical')
plt.title("Histogram for Q6 column")
plt.show()

plt.figure(figsize=(24, 24))
plt.pie(Q6.value_counts(),
       labels=Q6.value_counts().index,
       autopct='%d%%',
       textprops={'fontsize':24})
plt.axis('equal')
plt.title("Pie chart for Q6 column", fontsize=48)

Q15 column

• For how many years have you used machine learning methods?

Q15 = final_data["Q15"][1:]
Q15

# countplot을 사용해봅니다
plt.figure(figsize=(16, 12))
#sns.countplot(x="Q15", data=final_data[1:])
sns.countplot(y="Q15", data=final_data[1:])
plt.show()

plt.figure(figsize=(8,8))
plt.pie(Q15.value_counts(),
       labels=Q15.value_counts().index,
       autopct='%d%%',
        colors=sns.color_palette('hls',len(Q15.value_counts().index)),
       textprops={'fontsize':12})
plt.axis('equal')
plt.title("Pie chart for Q15 column", fontsize=16, pad=50)
plt.show()
